PROFESSIONAL SHALLOW WATER ALUMINUM BOATS

Built for professionals in severe, real-world conditions.

AB Inflatables introduces the all new swift water shallow V “AS-Series”. AB is constantly looking at the needs in the Rescue and Commercial industries. This new versatile use series will get into shallow flood waters without fear of what is below as well as handling the swift waters of rivers or flooded streams. Combining the best of all worlds with marine grade aluminum and 1670 D-tex CSM fabric making them the most durable boat on the market. With their open design and a variety of seats and consoles they can be customized for any use.

GALLERY
KEY FEATURES
SPECS
EQUIPMENTS
Profile A11 S

KEY FEATURES

  • Ventilation on Bow Locker
  • Large Square Transom Alum. Reinforced Base
  • Non-skid (CSM) Fabric on Tube
  • More Payload Capacity
  • More Internal Area
  • Optional B.Locker - 6 Gal portable F. tank
  • Pressure Relief Valves
  • Ultra High Quality Welding
  • Bow U bolt and lateral towing eyes
  • Double Solid Rubrail
  • New Heavy Duty Keel Protector
  • Shallow Water Version Hull
  • 1670 D-Tex ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Boat Cover Available
  • Reinforced Alum. Lifting Eyes with SS Rings
  • Internal Aluminum Plate with Security Lip
  • Reinforced (CSM) Fabric Handles
  • Non-skid Rubber Floor
  • Reinforced Alum. Transom Towing Eyes w/ SS Rings
  • Reinforced Alum. Transom Tie Downs w/ SS Rings
  • Custom Colors Upon Request

SPECS

Overall length

11’6" / 3,5m

Overall Beam

5’7’’ / 1,7m

Inside Length

8’6’’ / 2,59m

Inside Beam

2’8’’ / 0,81m

Tube Diameter

17’’ / 0,43m

Number of Chambers

6

Weight

227 lbs / 103 kg **

Weight with Bow Locker

242 lbs / 110 kg

Recommended HP

20hp / 14.9kw

Maximum HP

30hp / 22.4kw

Shaft length

15’’ / 38,1cm

RDC Design Category

C



Deadrise

6°



(**) Weight spec applies for models without bow locker
Add 5 kg / 11 lbs for model 11
Add 7 kg / 15 lbs for models 12-16

STANDARD EQUIPMENT

Marine Grade Aluminum Shallow "V" Hull
3 Heavy Duty Transom Knees
Welded Aluminum Stringer System
Non-Skid Rubber Floor Panels
Plastic External Transom Plate
Aluminum Internal Transom Plate
Aluminum Bow Eye
3-4 Aluminum Davit Lifting Points
Reinforced Aluminum Transom Tie Down & Towing Rings
Aluminum Bow Tie Down & Towing Rings
Deck Drain with Plug
Orca (CSM) 1670 Five Layer Coated Professional Use Fabric
Raised Double Solid Rub Rail
Push Plastic Non-Corrosive 2 Stage Inflation Valves
Pressure Relief Valves
1 Front & 4 Side Orca (CSM) Heavy Duty Fabric Handles on Tubes
Paddles with Aluminum Shaft
Paddle Holders
Hand Pump
Maintenance Kit
Owner´s Manual
4 Layers Reinforced Seams
Rubber Protector on Full Length of Keel
3 Inch Drain Scuppers
Non-Skid (CSM) Coated Fabric On Tube Surface
Lifeline Around Tube

OPTIONAL EQUIPMENT

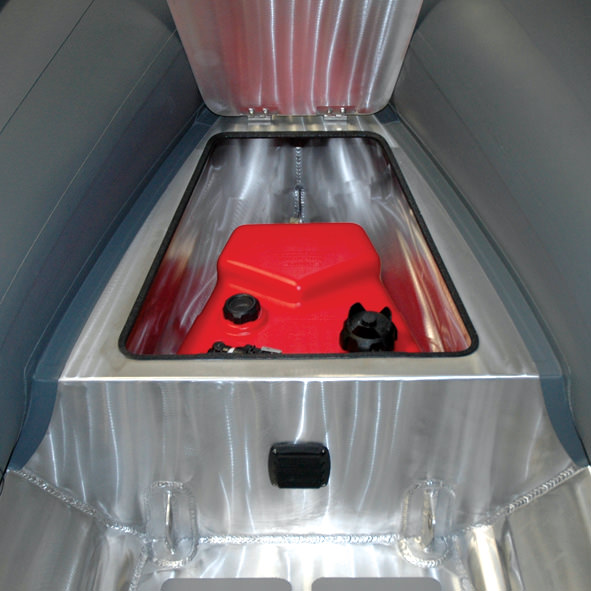

Bow Locker/Seat with Vent & Storage to Fit a 6 Gal Portable Fuel Tank
Boat Cover
Bow Step with Fold Down Stainless Steel Cleat
Lateral Fold Down Stainless Steel Cleat
Fiberglass Console
Fiberglass Console with Forward Seat
Bench Seat with Storage
One Person Jockey Console
Two Person Jockey Console
Aluminum Console
Customized Aluminum Consoles, Jockey Consoles & Seats
Mechanical or Hydraulic Steering System
Stainless Steel Steering Wheel
