PROFESSIONAL SHALLOW WATER ALUMINUM BOATS

Built for professionals in severe, real-world conditions.

Our “A- Series” Deep V models are designed to handle all weather conditions the elements can dish up. Their rugged yet lightweight aluminum hulls along with the tough 1670 D-tex CSM fabric make them the ideal boat for any rescue or commercial operation. These boats can be customized for any use with a variety of seats and consoles to suit any need. They are the most versatile professional RIBs on the market today.

GALLERY
KEY FEATURES
SPECS
EQUIPMENTS

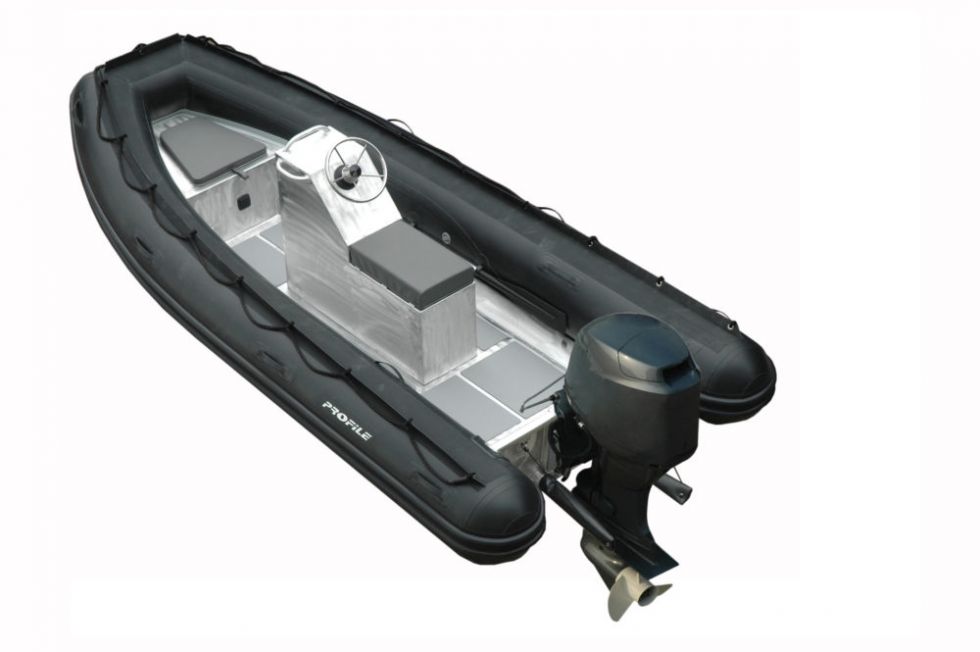

Profile 14

KEY FEATURES

  • Ventilation on Bow Locker
  • Large Square Transom Alum. Reinforced Base
  • Non-skid (CSM) Fabric on Tube
  • More Payload Capacity
  • More Internal Area

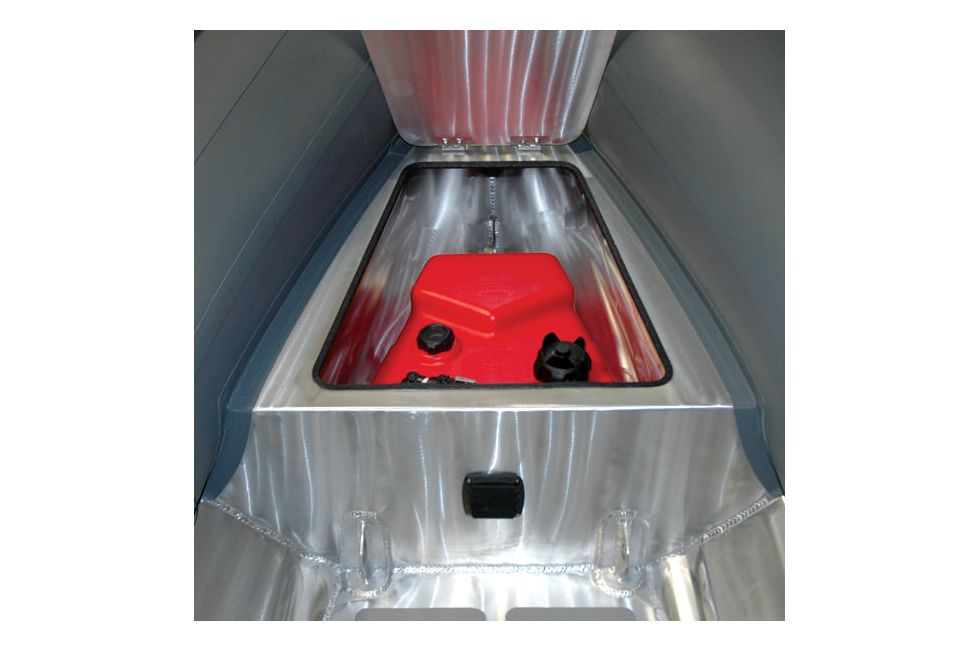

  • Optional B.Locker - 6 Gal portable F. tank
  • Pressure Relief Valves
  • Ultra High Quality Welding
  • Bow U bolt and lateral towing eyes
  • Double Solid Rubrail
  • New Heavy Duty Keel Protector
  • Shallow Water Version Hull
  • 1670 D-Tex ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Boat Cover Available
  • Reinforced Alum. Lifting Eyes with SS Rings
  • Internal Aluminum Plate with Security Lip
  • Reinforced (CSM) Fabric Handles
  • Non-skid Rubber Floor
  • Reinforced Alum. Transom Towing Eyes w/ SS Rings
  • Reinforced Alum. Transom Tie Downs w/ SS Rings
  • Custom Colors Upon Request

SPECS

Overall length

14’ / 4,27m

Overall Beam

6’7’’ / 2m

Inside Length

10’10’’ / 3,3m

Inside Beam

3’3’’ / 0,99m

Tube Diameter

19’’ / 0,48m

Person Capacity

8

Weight

287 lbs / 130 kg **

Recommended HP

40hp / 29.8kw

Maximum HP

50hp / 37,3kw



Shaft Length

20’’ / 50,8cm

RDC Design Category

C

(**) Weight spec applies for models without bow locker. Add 7 kg / 15 lbs for models 12-16.

STANDARD EQUIPMENT

Deep "V" Marine Grade Aluminum Hull
3 Heavy Duty Transom Knees
Welded Aluminum Stringer System
Non-Skid Rubber Floor Panels
Plastic External Transom Plate
Aluminum Internal Transom Plate
Aluminum Bow Eye
3-4 Aluminum Davit Lifting Points
Reinforced Aluminum Transom Tie Down & Towing Rings
Aluminum Bow Tie Down & Towing Rings
Deck Drain with Plug
Orca (CSM) 1670 Five Layer Coated Professional Use Fabric
Raised Double Solid Rub Rail
Push Plastic Non-Corrosive 2 Stage Inflation Valves
Pressure Relief Valves
1 Front & 4 Side Orca (CSM) Heavy Duty Fabric Handles on Tubes
Paddles with Aluminum Shaft
Paddle Holders
Hand Pump
Maintenance Kit
Owner´s Manual
4 Layers Reinforced Seams
Rubber Protector on Full Length of Keel
3 Inch Drain Scuppers
Non-Skid (CSM) Coated Fabric On Tube Surface
Lifeline Around Tube

OPTIONAL EQUIPMENT

Bow Locker/Seat
Boat Cover
Bow Step with Fold Down Stainless Steel Cleat
Lateral Fold Down Stainless Steel Cleat
Fiberglass Console
Fiberglass Console with Forward Seat
Bench Seat with Storage
One Person Jockey Console
Two Person Jockey Console
Aluminum Console
Customized Aluminum Consoles, Jockey Consoles & Seats
Mechanical or Hydraulic Steering System
Stainless Steel Steering Wheel
