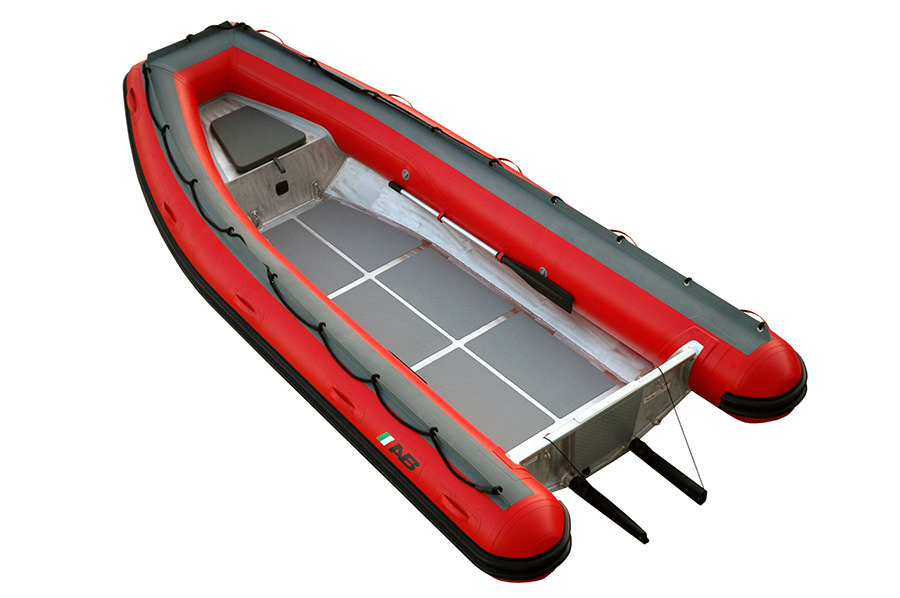

Profile
A15
PROFESSIONAL ALUMINUM BOATS
Professional grade and purposefully-built, prepared to take you on any task.
Our “A- Series” Deep V models are designed to handle all weather conditions the elements can dish up. Their rugged yet lightweight aluminum hulls along with the tough 1670 D-tex CSM fabric make them the ideal boat for any rescue or commercial operation. These boats can be customized for any use with a variety of seats and consoles to suit any need. They are the most versatile professional RIBs on the market today.
PROFILE A15 GALLERY
KEY FEATURES
- Ventilation on Bow Locker
- Large Square Transom Alum. Reinforced Base
- Non-skid (CSM) Fabric on Tube
- More Payload Capacity
- More Internal Area
- Optional B.Locker - 6 Gal portable F. tank
- Pressure Relief Valves
- Ultra High Quality Welding
- Bow U bolt and lateral towing eyes
- Double Solid Rubrail
- New Heavy Duty Keel Protector
- "V" Hull
- 1670 D-Tex ORCA (CSM) Coated Fabric
- Sunbrella Fabric Boat Cover Available
- Reinforced Alum. Lifting Eyes with SS Rings
- Internal Aluminum Plate with Security Lip
- Reinforced (CSM) Fabric Handles
- Custom Colors Upon Request
- Non-skid Rubber Floor
- Reinforced Alum. Transom Towing Eyes w/ SS Rings
- Reinforced Alum. Transom Tie Downs w/ SS Rings
SPECS
Overall length
15’ / 4,57m
Overall Beam
6’9’’ / 2,06m
Inside Length
11’8’’ / 3,55m
Inside Beam
3’4’’ / 1,03m
Tube Diameter
19’’ / 0,48m
Person Capacity
9
Weight
383 lbs / 174 kg **
Weight with Bow Locker
401 lbs / 182 kg
Recommended HP
50hp / 37,3kw
Maximum HP
60hp / 44,8kw
Shaft length
20’’ / 50,8cm
RDC Design Category
C
Deadrise
18°
(**) Weight spec applies for models without bow locker
Add 5 kg / 11 lbs for model 11
Add 7 kg / 15 lbs for models 12-16
STANDARD EQUIPMENT
Deep "V" Marine Grade Aluminum Hull3 Heavy Duty Transom Knees
Welded Aluminum Stringer System
Non-Skid Rubber Floor Panels
Plastic External Transom Plate
Aluminum Internal Transom Plate
Aluminum Bow Eye
3-4 Aluminum Davit Lifting Points
Reinforced Aluminum Transom Tie Down & Towing Rings
Aluminum Bow Tie Down & Towing Rings
Deck Drain with Plug
Orca (CSM) 1670 Five Layer Coated Professional Use Fabric
Raised Double Solid Rub Rail
Push Plastic Non-Corrosive 2 Stage Inflation Valves
Pressure Relief Valves
1 Front & 5 Side Orca (CSM) Heavy Duty Fabric Handles on Tubes
Paddles with Aluminum Shaft
Paddle Holders
Hand Pump
Maintenance Kit
Owner´s Manual
4 Layers Reinforced Seams
Rubber Protector on Full Length of Keel
3 Inch Drain Scuppers
Non-Skid (CSM) Coated Fabric On Tube Surface
Lifeline Around Tube
OPTIONAL EQUIPMENT

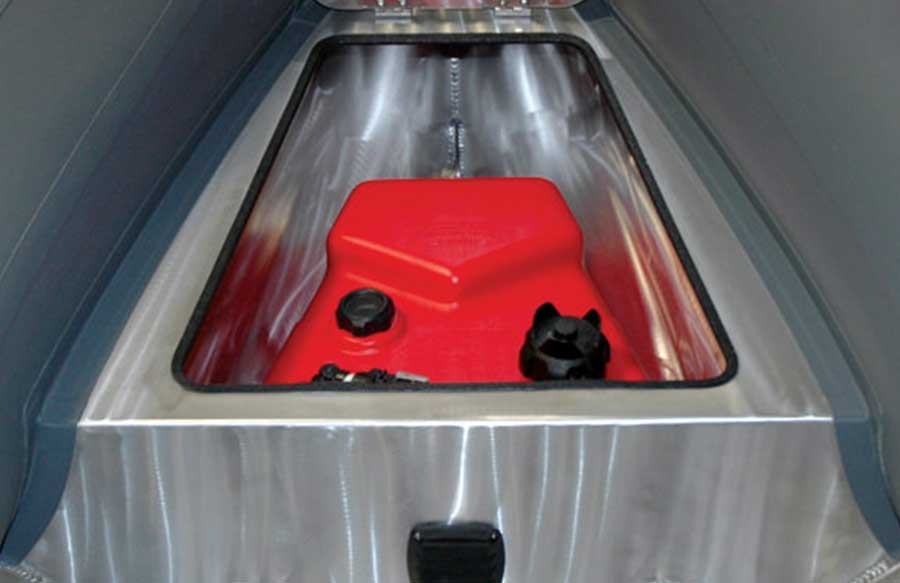

Bow Locker/Seat with Vent & Storage to Fit a 6 Gal Portable Fuel TankPortable 6 gal Fuel Tank Installed in Bow Locker with Fittings
Boat Cover
Bow Step with Fold Down Stainless Steel Cleat
Lateral Fold Down Stainless Steel Cleat
Fiberglass Console
Fiberglass Console with Forward Seat
Bench Seat with Storage
One Person Jockey Console
Two Person Jockey Console
Aluminum Console
Customized Aluminum Consoles, Jockey Consoles & Seats
Mechanical or Hydraulic Steering System
Stainless Steel Steering Wheel
