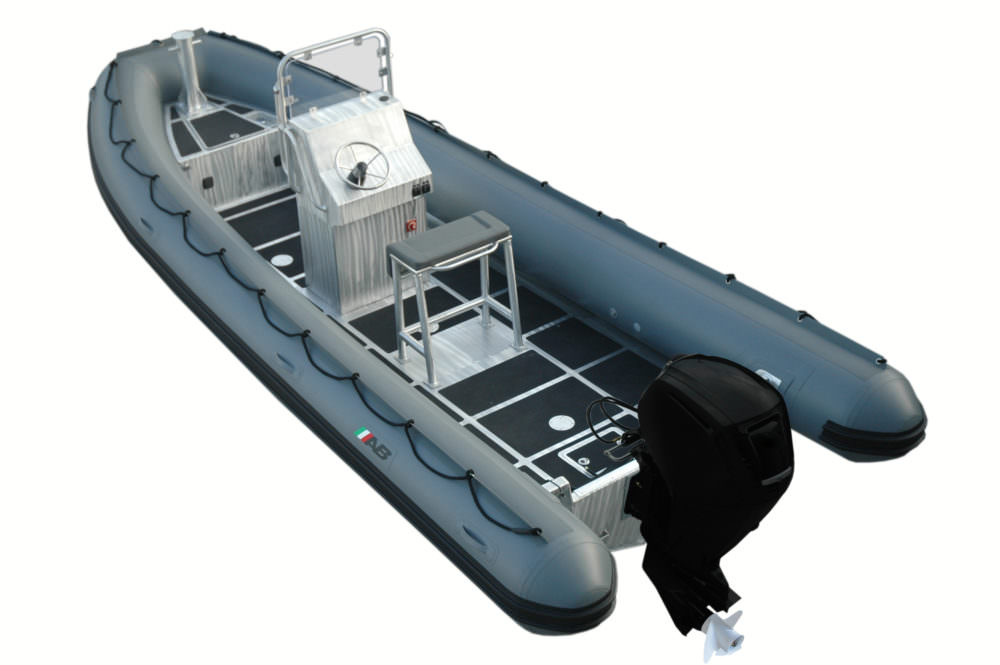

Profile
A21-XHD
PROFESSIONAL ALUMINUM CONSOLE BOATS
High-Quality and performance-driven boat, the flagship professional-grade RIBs line.
AB Inflatables is proud to introduce the new professional line PROFILE A- XHD. Designed for the most difficult and demanding military & commercial operations, these new workhorses (water-war-tanks) are ready to withstand anything Mother Nature can throw at you.The PROFILE A–XHD line is built for the toughest environmental conditions. Every model is geared toward a specific mission, keeping in mind the circumstances it will be exposed to. Every professional will appreciate the ¼” thick aluminum hull supported by a heavy duty welded stringer system and the most durable 1670 D-Tex CSM fabric. Its robust internal construction currently makes this new professional line the safest and most reliable RIB.
A wide list of optional features is also available for this new line. The PROFILE A–XHD can be customized to suit the most particular needs by offering standup aluminum consoles, cabins, leaning bolsters, aluminum jockey seats, gun mounts, among other features.

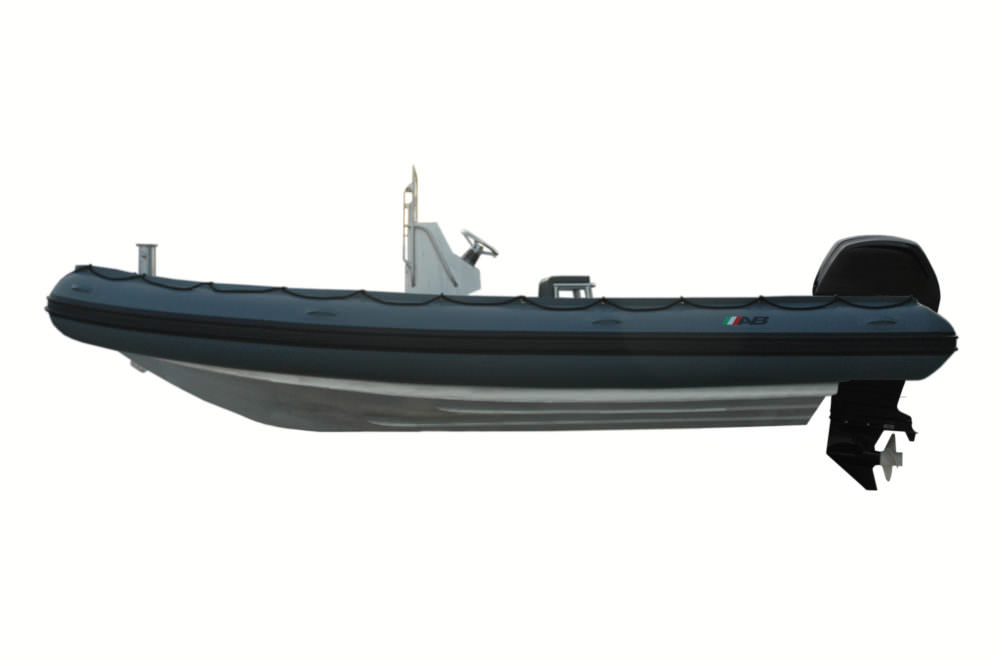

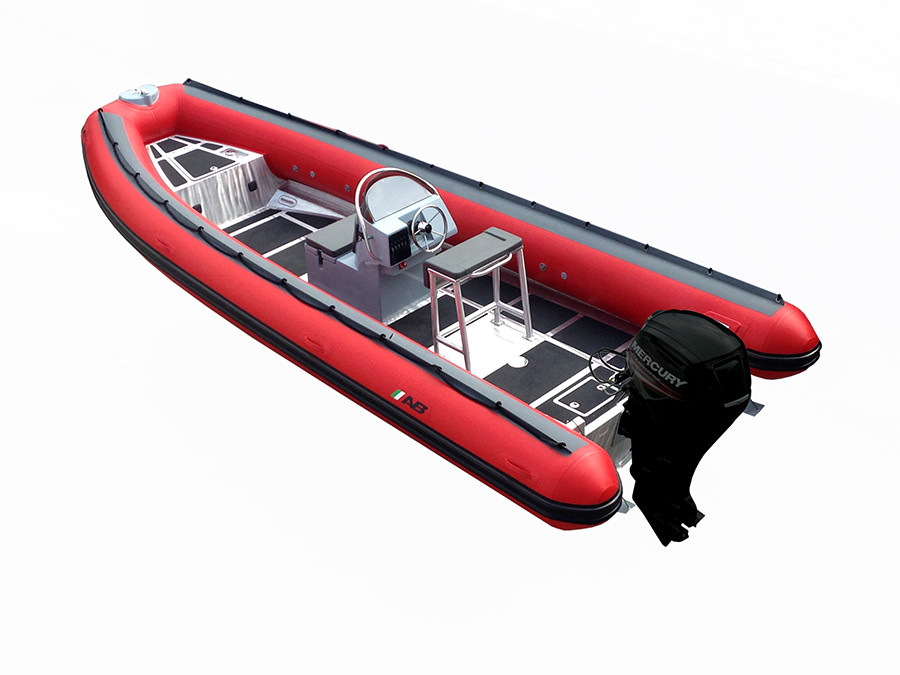

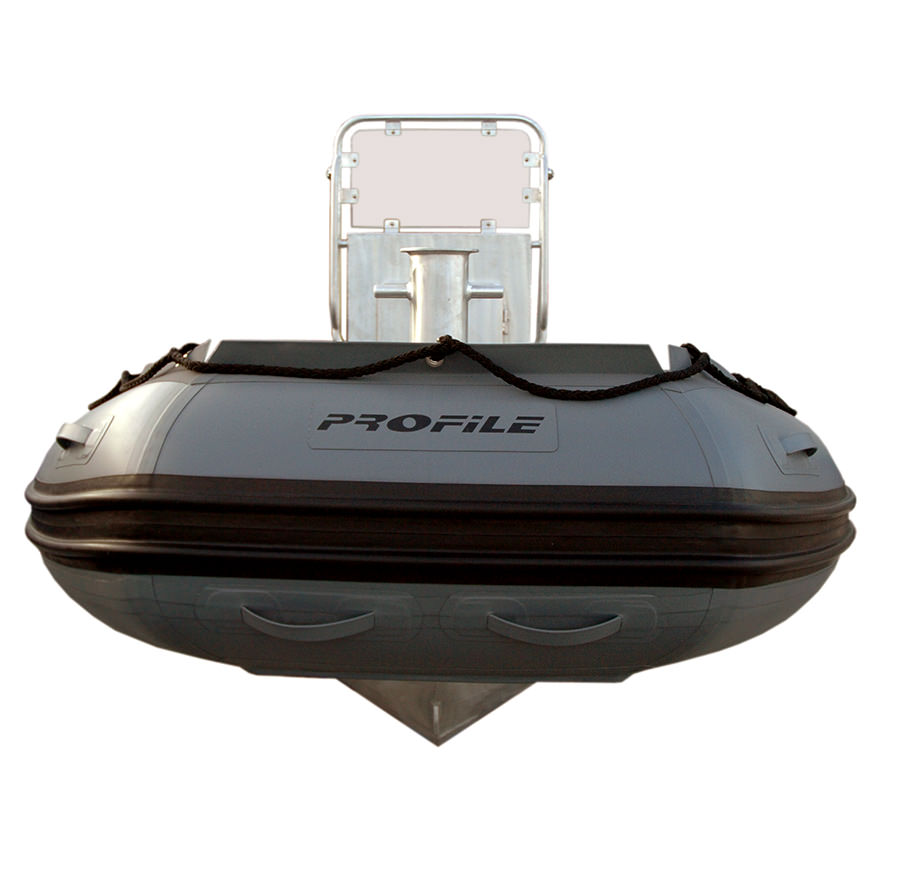

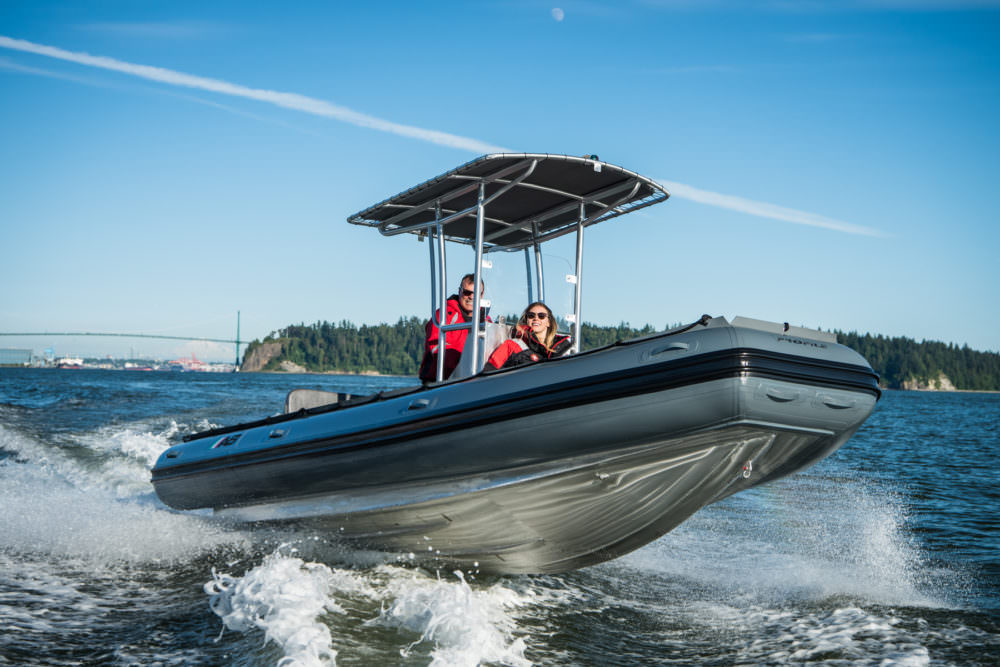

PROFILE A21-XHD GALLERY
KEY FEATURES
- Bow Locker

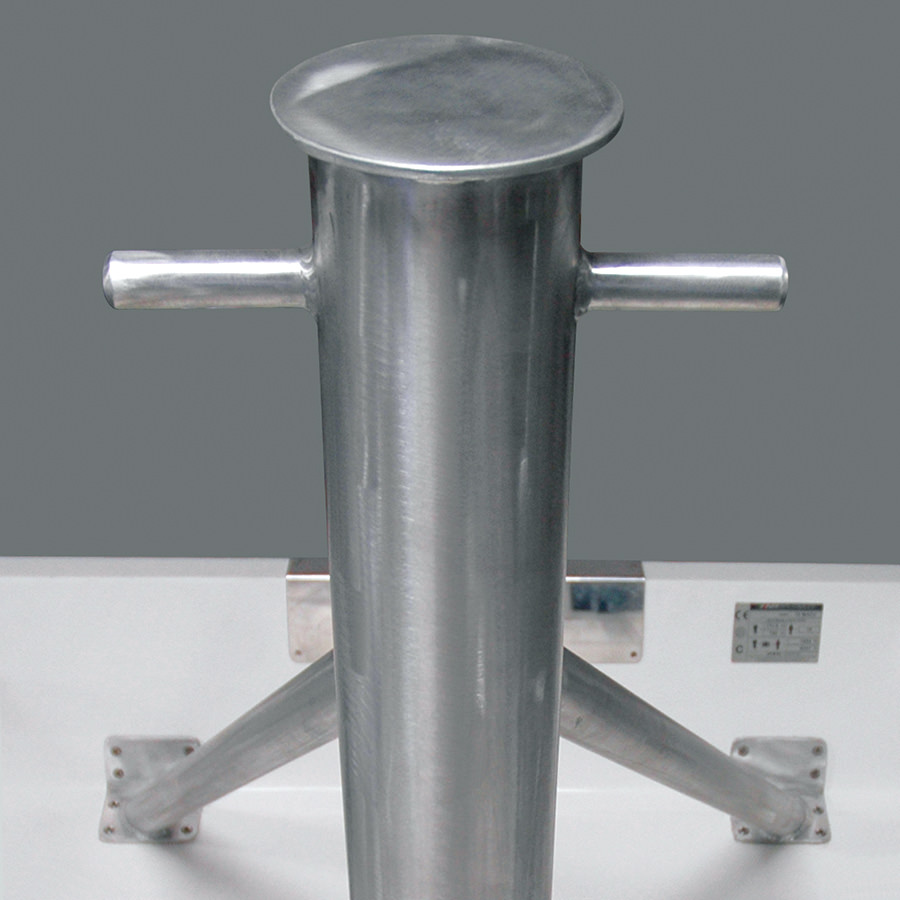

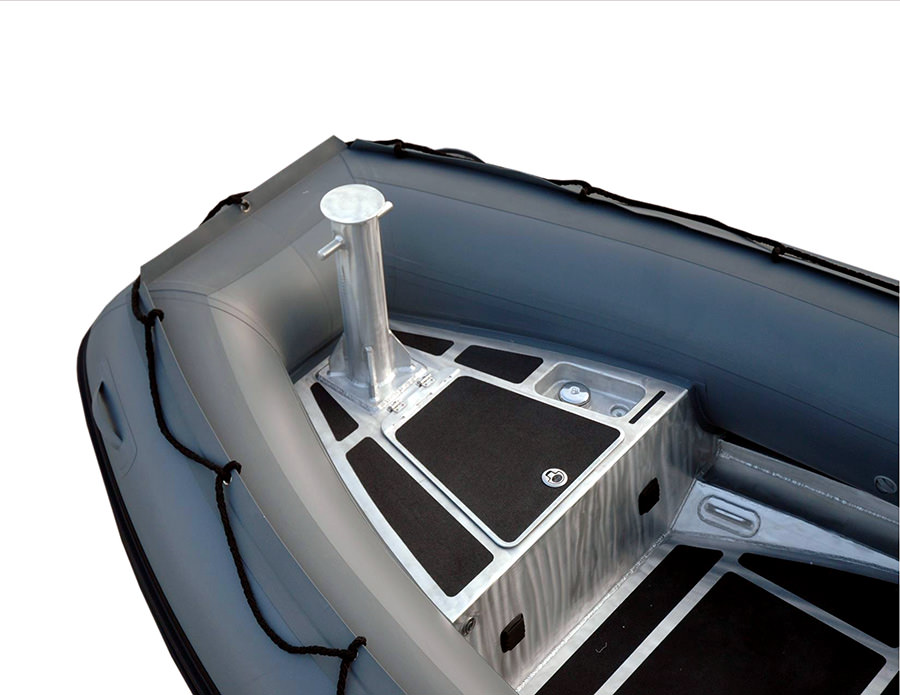

- Heavy Duty Bow Towing Post
- Large Square Transom Alum. Reinforced Base
- Extra Heavy Duty Stringers and "V"Hull
- Non-skid (CSM) Fabric on Tube
- NMMA Certified Aluminum Fuel Tank (EPA compliant fuel tanks, 7% reduction approx.)
- Pressure Relief Valves
- Ultra High Quality Welding
- Bow U bolt and lateral towing eyes
- Double Solid Rubrail

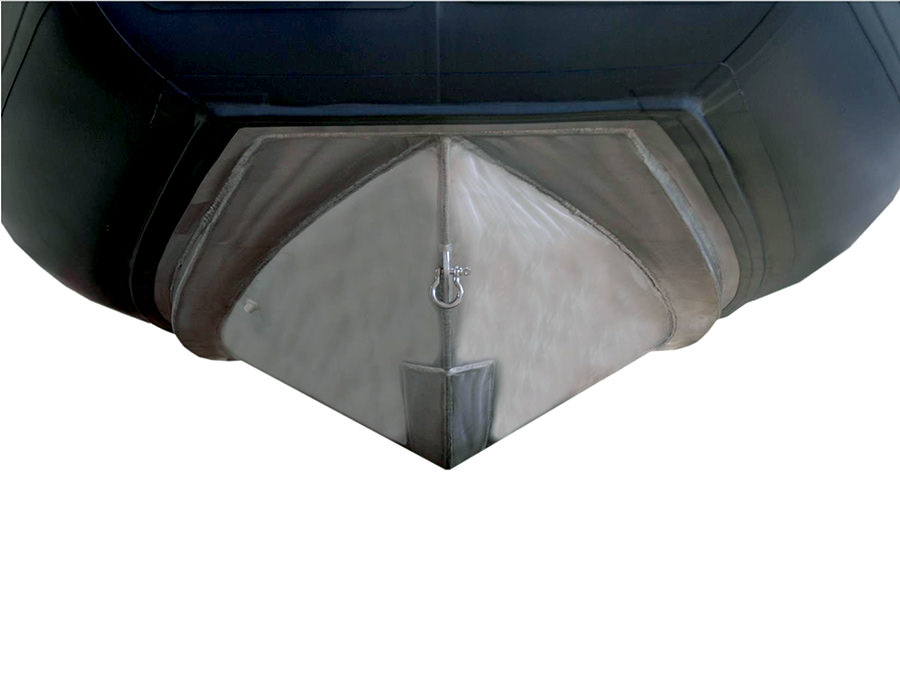

- Heavy Duty "Aluminum" Keel Protector
- 1670 D-Tex ORCA (CSM) Coated Fabric
- Sunbrella Fabric Boat Cover Available
- Reinforced Alum. Lifting Eyes with SS Rings
- Internal Aluminum Plate with Security Lip
- Reinforced (CSM) Fabric Handles
- Non-skid Rubber Floor
- Reinforced Alum. Transom Towing Eyes w/ SS Rings
- Reinforced Alum. Transom Tie Downs w/ SS Rings
- Hydraulic Steering System and SS Wheel
- Custom Colors & Consoles Upon Request
SPECS
Overall length
21' / 6.4m
Overall Beam
9'1" / 2.77m
Inside Length
16'5" / 5m
Inside Beam
4'6" / 1.37m
Tube Diameter
22" / 0.56m
Person Capacity
17
Weight
1580 lbs / 717kg
Recommended HP
150hp / 111.9kw
Maximum HP
200hp / 149.2kw
Shaft length
25" / 63.5cm
Fuel Built-In Tanks
51 gal / 193 lt - EPA compliant fuel tanks, 7% reduction approx.
RDC Design Category
C
Deadrise
23°
Boat can be customized upon request
STANDARD EQUIPMENT
Over Built Deep "V" Professional Marine Grade Aluminum HullBow Locker
Welded Aluminum Stringer System
Heavy Duty Non-Skid Rubber Floor Panels
Hydraulic Steering System
Heavy Duty Bow Towing Post
Leaning Bolster

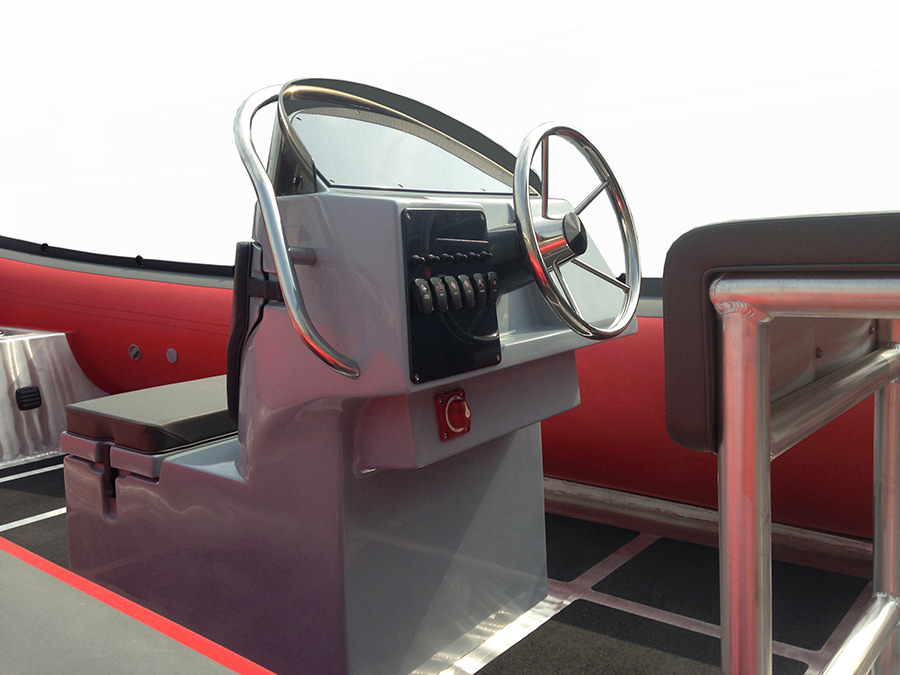

Aluminum Console
Integrated Marine Grade Aluminum Fuel Tank (Reduced capacity in integrated fuel tank with EPA standard)
Welded Aluminum Protector on Full Length of Keel
3 Heavy Duty Internal Transom Knees
Plastic External Transom Plate

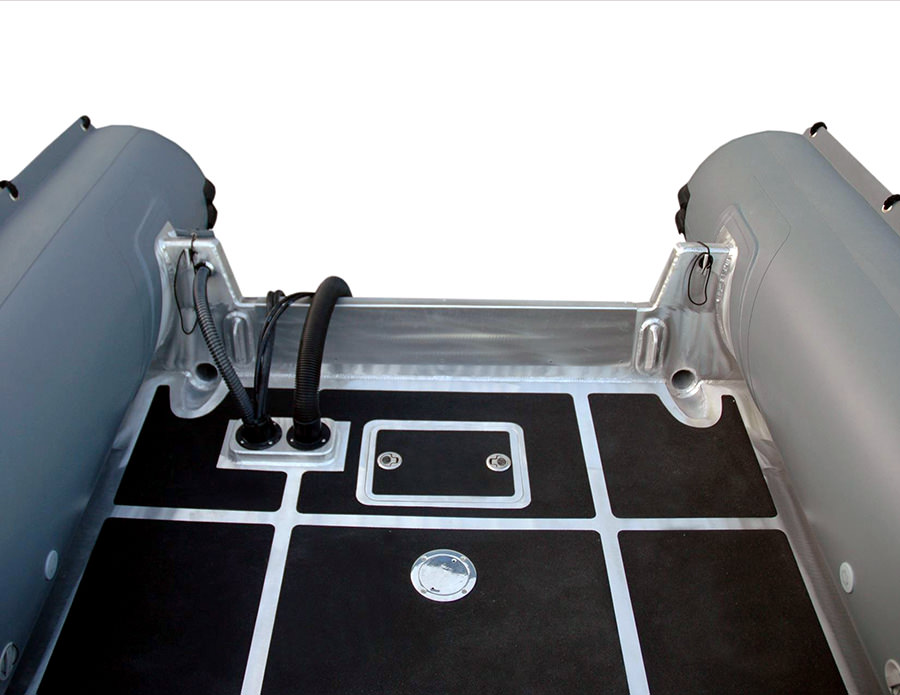

Aluminum Internal Transom Plate
Welded Aluminum Bow Eye With Stainless Steel Shackles
4 Aluminum Davit Lifting Points
Reinforced Aluminum Transom Tie Down & Towing Rings
Aluminum Bow Tie Down & Towing Ring
Deck Drain with Plug
Orca (CSM) 1670 Five Layer Coated Professional Use Fabric
Raised Double Solid Rub Rail
Push Plastic Non-Corrosive 2 Stage Inflation Valves
Pressure Relief Valves
2 Front & 4 Side Orca (CSM) Heavy Duty Fabric Handles on Tubes
Automatic Bilge Pump
Stainless Steel Inspection Plates
Hand Pump
Maintenance Kit
Owner´s Manual
4 Layer Reinforced Seams
3 Inch Drain Scuppers
Non-Skid (CSM) Coated Fabric On Tube Surface
Lifeline Around Tube
Led Running Lights
360° Led Navigation Pole
OPTIONAL EQUIPMENT
Boat CoverBow Step with Fold Down Stainless Steel Cleat
Lateral Fold Down Stainless Steel Cleat
Fiberglass Console
Fiberglass Console with Forward Seat
Bench Seat with Storage
One Person Jockey Console
Two Person Jockey Console
Fiberglass Jockey Consoles
Customized Aluminum Consoles, Jockey Consoles & Seats
Tube Chaps
GPS
VHF Package
Compass
Stern Towing Post
Light Arch

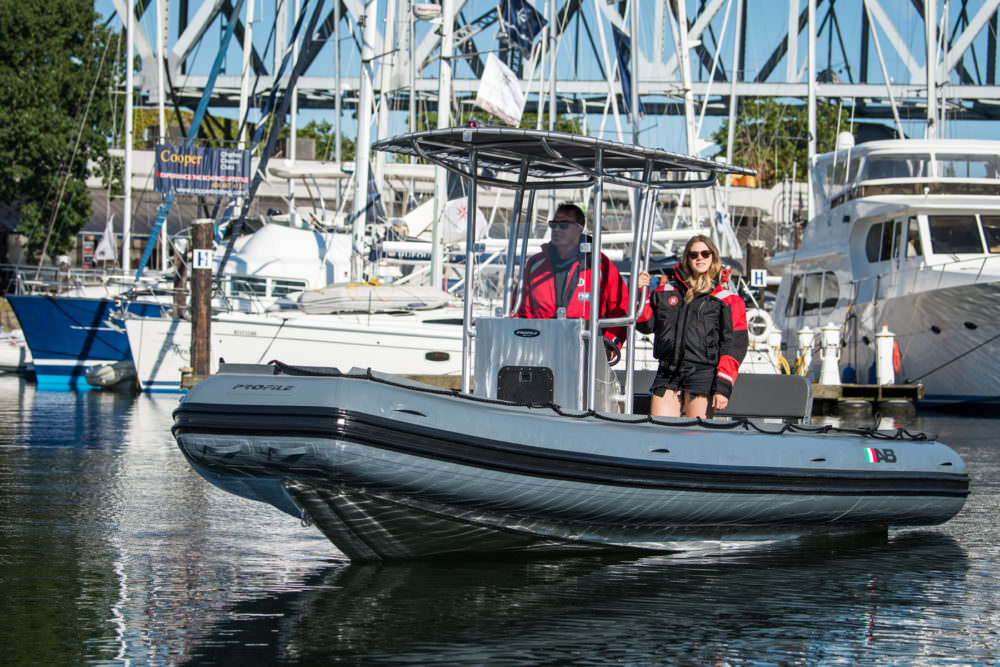

Aluminum T-Top
Engine Guard
