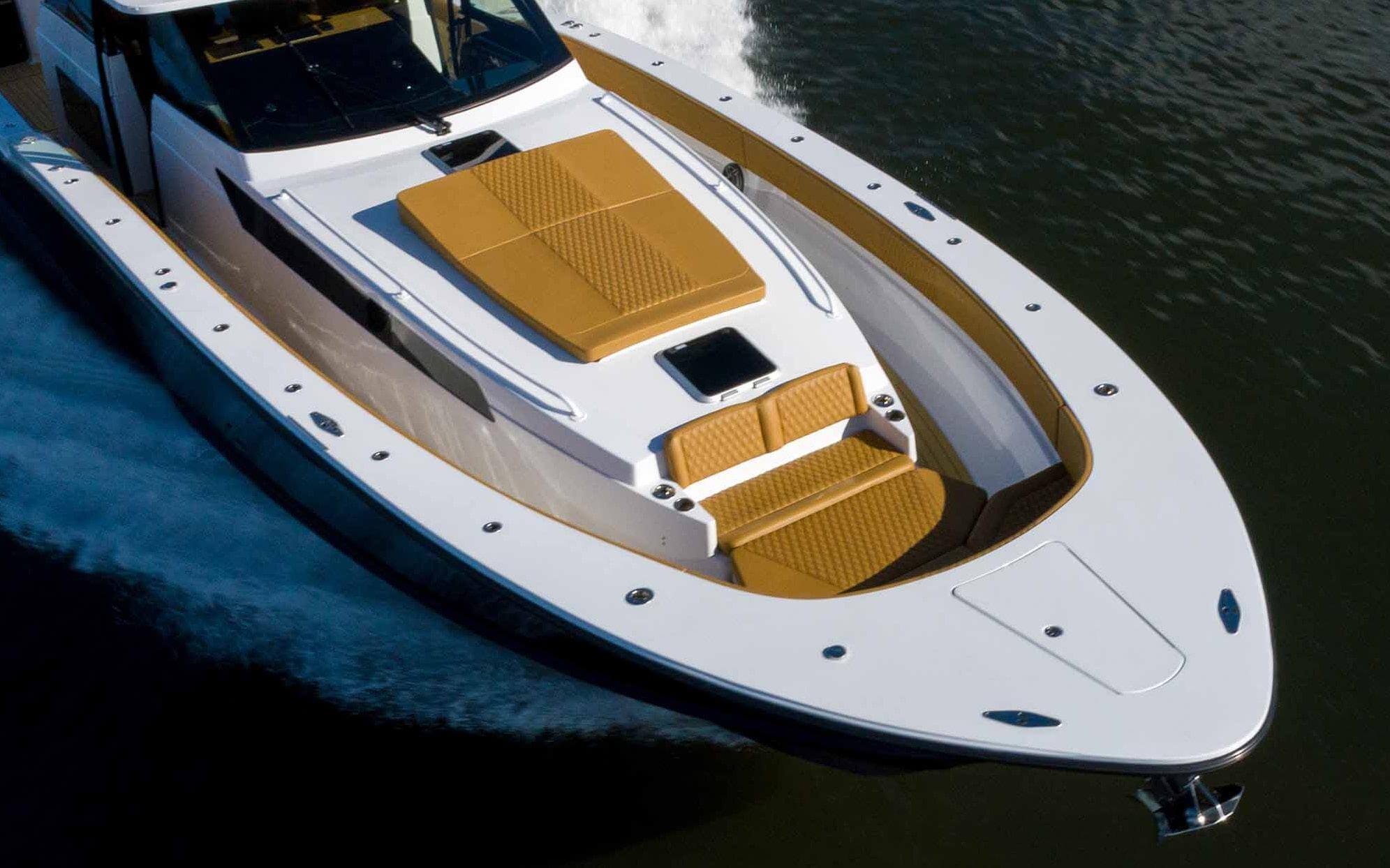

5300 CENTER CONSOLE
CENTURY 5300 CENTER CONSOLE 53-FOOT FISHING BOATS
THE LEGACY
Founding
The Welch Brothers
Century Boat Company was founded in 1926 in Milwaukee, Wisconsin by two brothers, James and William Welch, who specialized in building wooden plank hulls designed for speed. In 1928, the company moved to Manistee, Michigan.
History
Designed for speed and fun…
Century’s “Hurricane” held the world’s outboard speed record of 50.93 miles per hour. By 1937, Century offered 28 models. In the early 1960s, Century Boats introduced it’s first jet-powered boat. In the late 1960s, Century began creating composite fiberglass hulls. In 1983 the company moved to Panama City, FL. Century led the popularization of boats with car like attributes.
Today
Multiple product lines for discerning boaters
Having sold 10,000+ boats over 95 years, Century Boats designs and builds high quality, luxury boats of many sizes in Tampa, FL. It sells its boats primarily through a vast, global dealer network.
SPECIFICATIONS
- LENGTH: 53′-0”
- BEAM: 15′-0″
- Transom Deadrise: 22°
- GROSS WEIGHT: 30,000 lbs.
- FUEL CAPACITY: 1000 gal.
- FRESHWATER CAPACITY: 100 gal.
- DIESEL CAPACITY: 35 gal.
- WASTE: 25 gal.
- MAX. HORSEPOWER: 4,000 hp
STANDARD EQUIPMENT
CONSTRUCTION & ENGINEERING Century uses high performance gelcoats that are formulated to withstand the marine environment, beating all the elements to protect your surface finishes from saltwater, UV light, and rough handling to ensure high-gloss retention. Standard gel coat color is Snow White. All fiberglass components (such as hulls, decks, integrated stringer grids, etc.) are fully molded for a flawless fit & finish and fabricated with aerospace grade composite technology. Our lamination process uses vacuum infused carbon fiber hybrid materials in unison with the latest PVC core technology and is engineered for density, thickness, and stiffness.SAFETY
- Meets ISO structural standards
- Dual zone SPX bilge system with (x2) 2200-gph automatic bilge pumps, Ultimate Senior float switches, manual overrides, and high water alarms
- Fire Boy-Xintex Automatic fire suppression system in machinery spaces
- Fire Boy-Xintex Fire extinguishers
- MTI Smoke/CO detector in cabin
- Dedicated PFD storage
- Limited Hull Warranty – 5 years
- Components: 1 year of manufacturers warranty, where applicable
- Platinum Warranty extension available
- Quad Yamaha 425 (grey)
- Eco Enertia SS propellers
- 10-micron fuel/water separator with sensor & alarm per engine
- 9.5Kw Next-Gen marine diesel generator with remote start/stop panel and Racor diesel water separator
- Seakeeper 6 DC gyrostabilizer
- Quick 12 VDC bow thruster
- ZipWake dynamic trim system
- Integrated sea chest ensuring continuous clean water to all pumps in the fish and bait live-wells
- Aluminum gas, diesel, and freshwater tanks with coal tar epoxy coating and NMEA digital sending units
- Polyethylene holding tank with NMEA digital sending unit
- Quick 1200-watt water heater
- (x1) 150-amp Xantrex smart battery chargers
- C-Zone digital switching
- Odyssey AGM battery system (1 per engine, 1 for generator, 3 for house, 1 for bow thruster & windlass) with remote/manual disconnect switches and monitoring system
- USB charging outlets throughout
- 110V GFCI outlets throughout
- 30-amp shore cord, 35’
- All wiring uses UL rated tinned copper wire and meets ABYC standards
- Bonded electrical system with sacrificial anodes
- Non-skid on all gunwale and deck surfaces
- Stainless steel deck fills (4 gas, 1 diesel, 1 water, 1 waste)
- Premium marine vinyl wraparound bolsters
- Stainless steel pop-up cleats (x8)
- Under gunwale rod/gaff storage
- Gemlux Rod Holders • (x5) transom module • (x8) gunwale • (x2) mezzanine (rod/cup holder) • (x2) bow lounger (rod/cup holder)
- (x2) 15-gal insulated wells at bow to hold bait, beverages or bumpers
- Stainless steel grab-rails
- 300 qt in-deck dry storage box
- Anchor locker w/ Quick AL3 windlass: includes 316SS bow plate, roller, 35lbs Ultra Anchor, safety harness, and 300ft rode
- (x2) 300 qt insulated in-deck fish boxes, midship aft, diaphragm pumped
- (x2) 200 qt insulated in-deck fish boxes, midship fwd, diaphragm pumped
- (x2) 60-gal pressurized transom livewell w/ Hooker
- Electric variable speed pumps and adjustable fills/drains (available as Insta-Freezer)
- (x2) 600 qt insulated in-deck diaphragm pumped fish boxes (available as Insta-Freezers)
- 360° fishability with dual transom doors and unobstructed splash well
- Self-draining w/ integrated gutter system
- Port side dive door with deployable ladder
- Folding rear bench seat at livewell
- Fresh and salt water wash downs

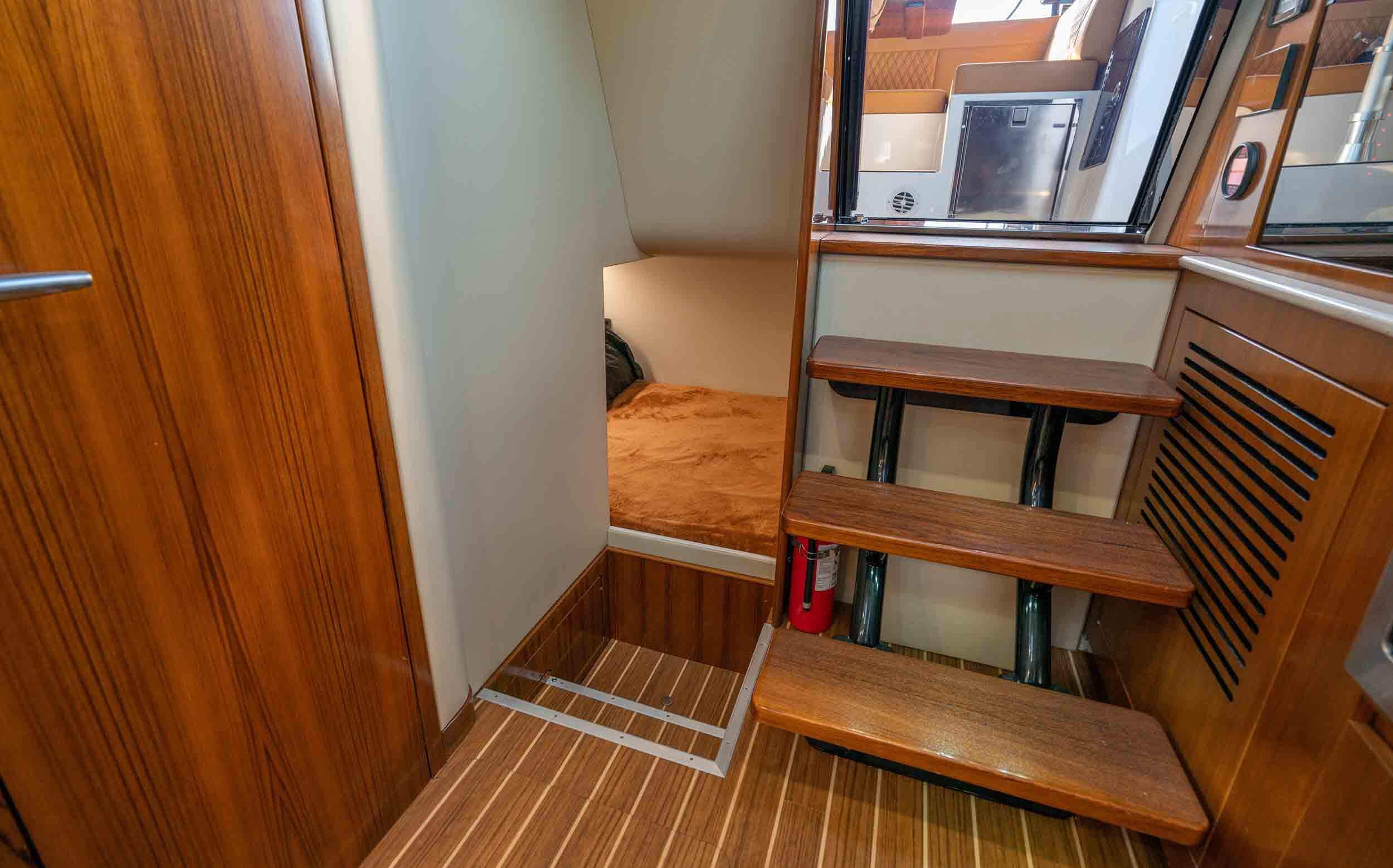

- Locking companionway entryway through helm
- Termodinamica dual air-conditioning w/ smart logic system that adapts and self-adjusts when it detects one zone having a higher need than another
- Isotherm 65 SS drawer fridge w/ freezer
- GE SS compact microwave
- Lumitec LED lighting throughout
- 32” Jensen LED smart TV
- Premium LVT flooring

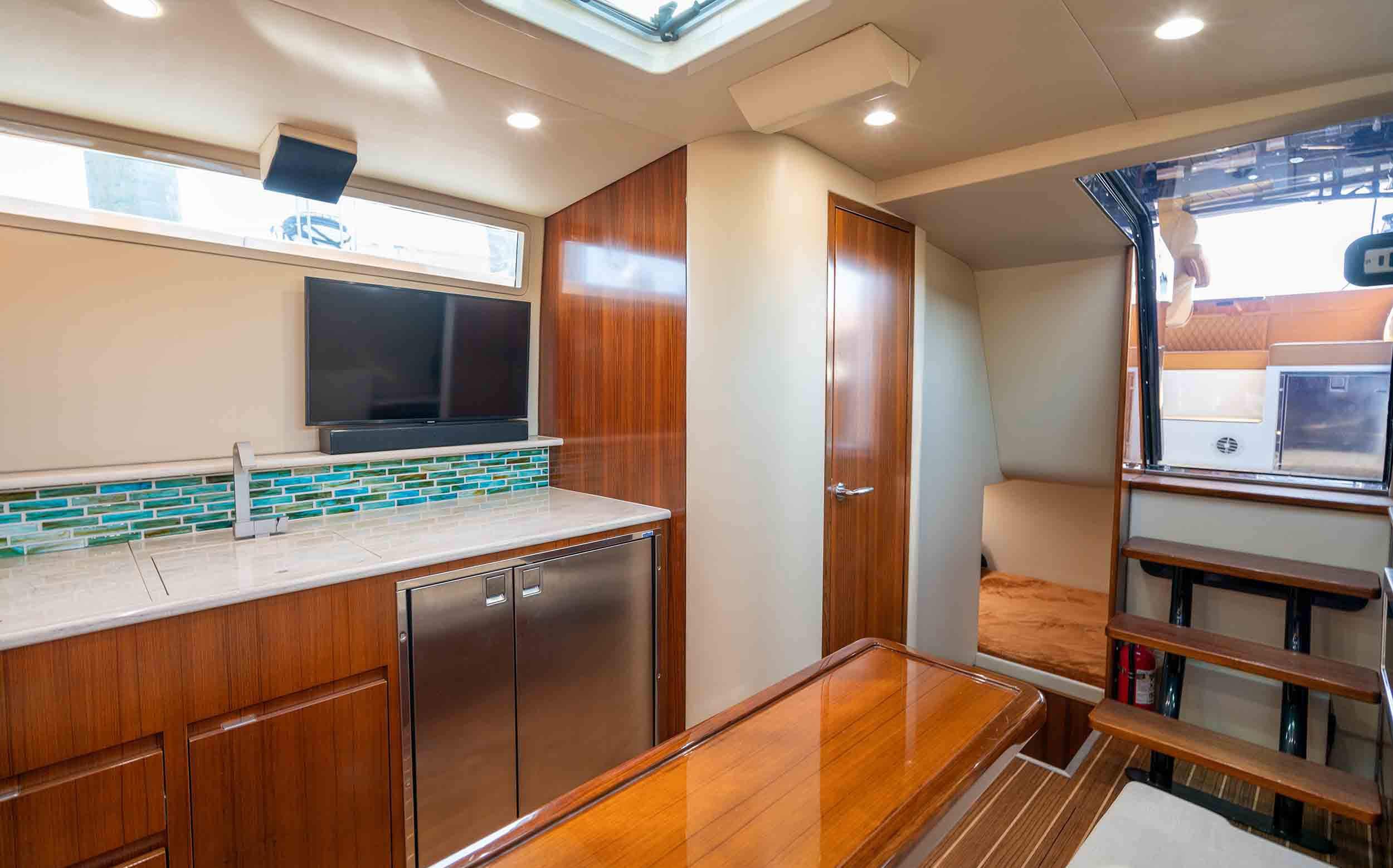

- Corian countertop in cabin & head
- Fully enclosed wet head with vanity, hot/cold vessel sink and mirror; 12V macerated toilet with holding tank or overboard discharge; hot/cold shower with LED lighting

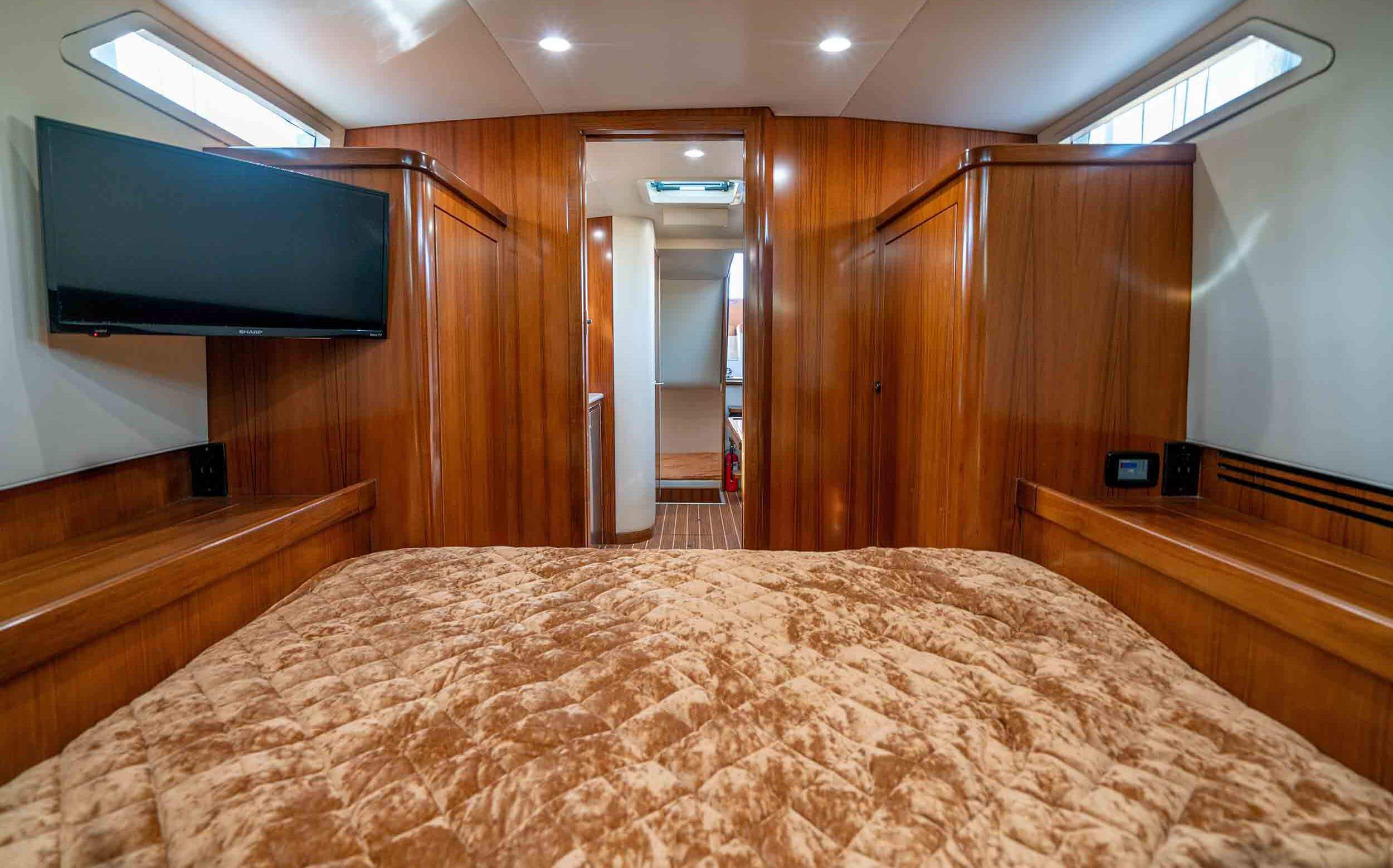

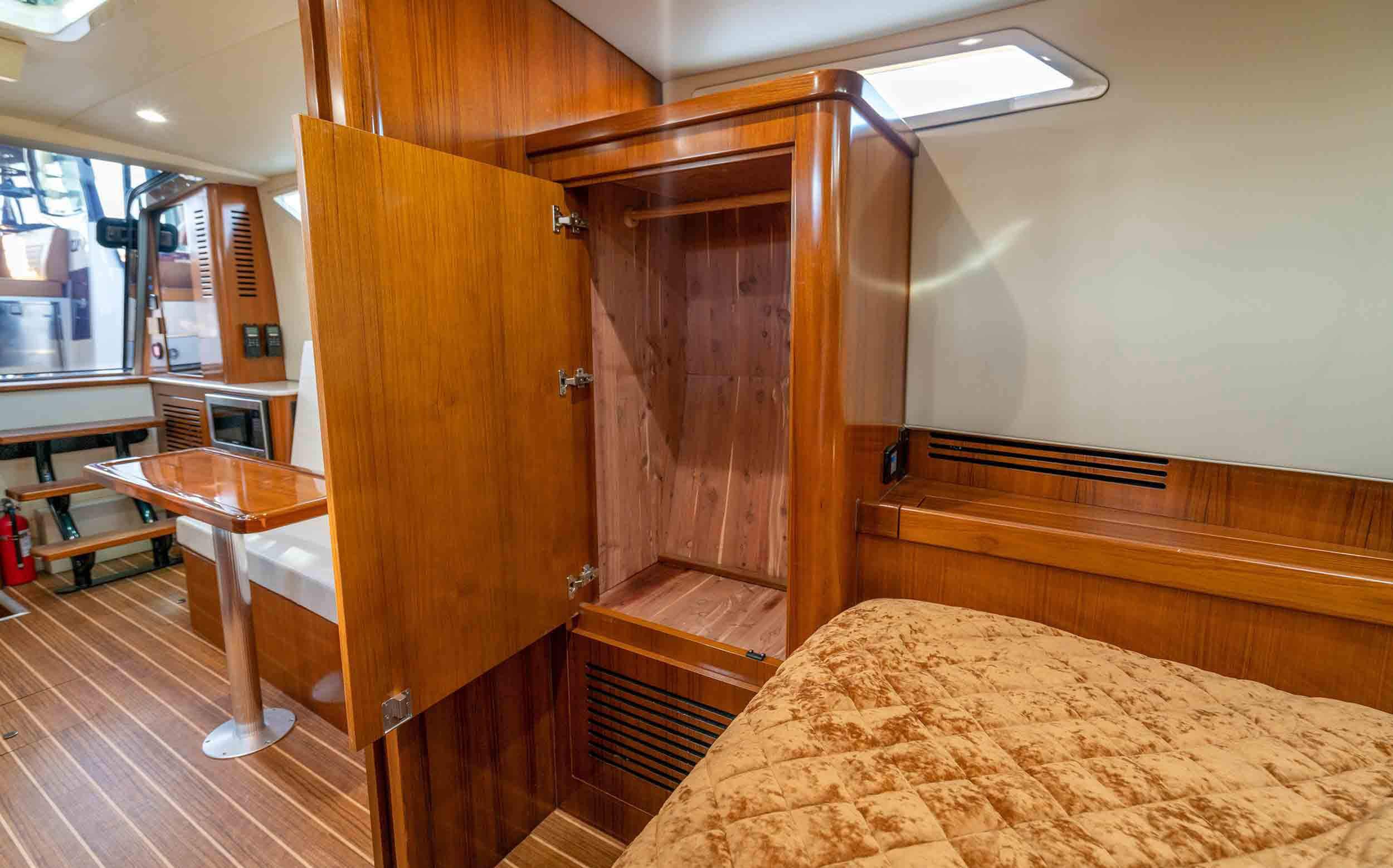

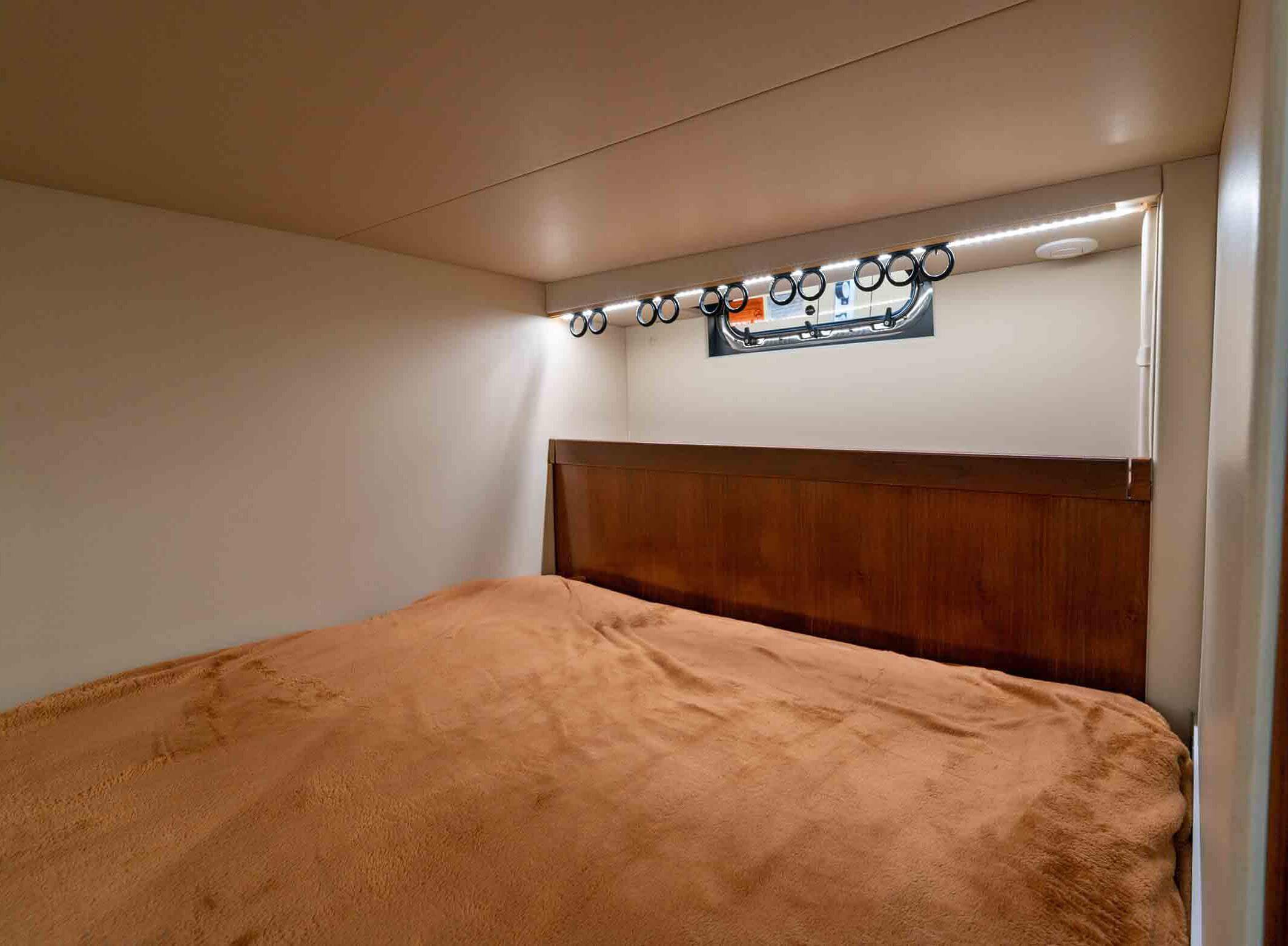

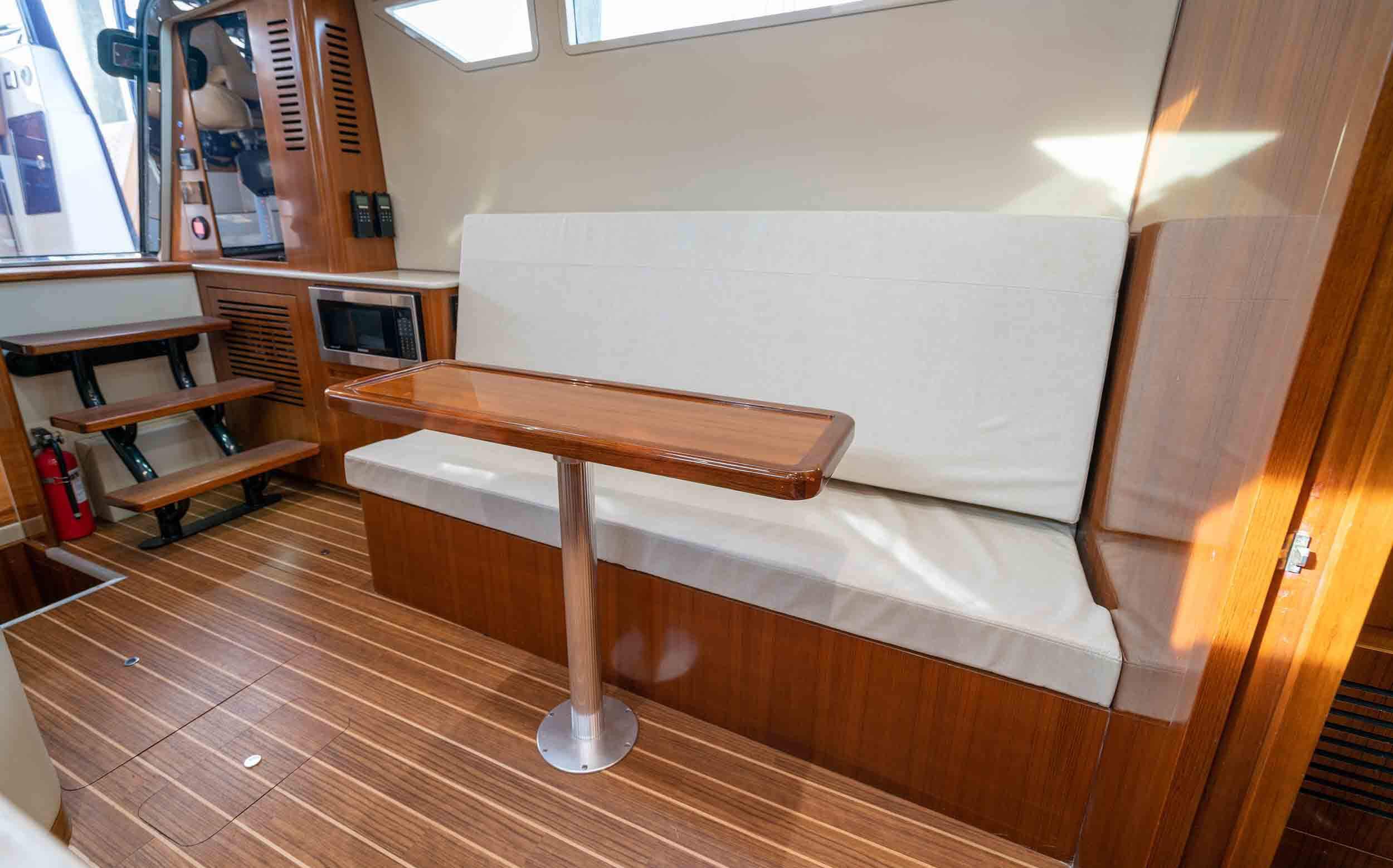

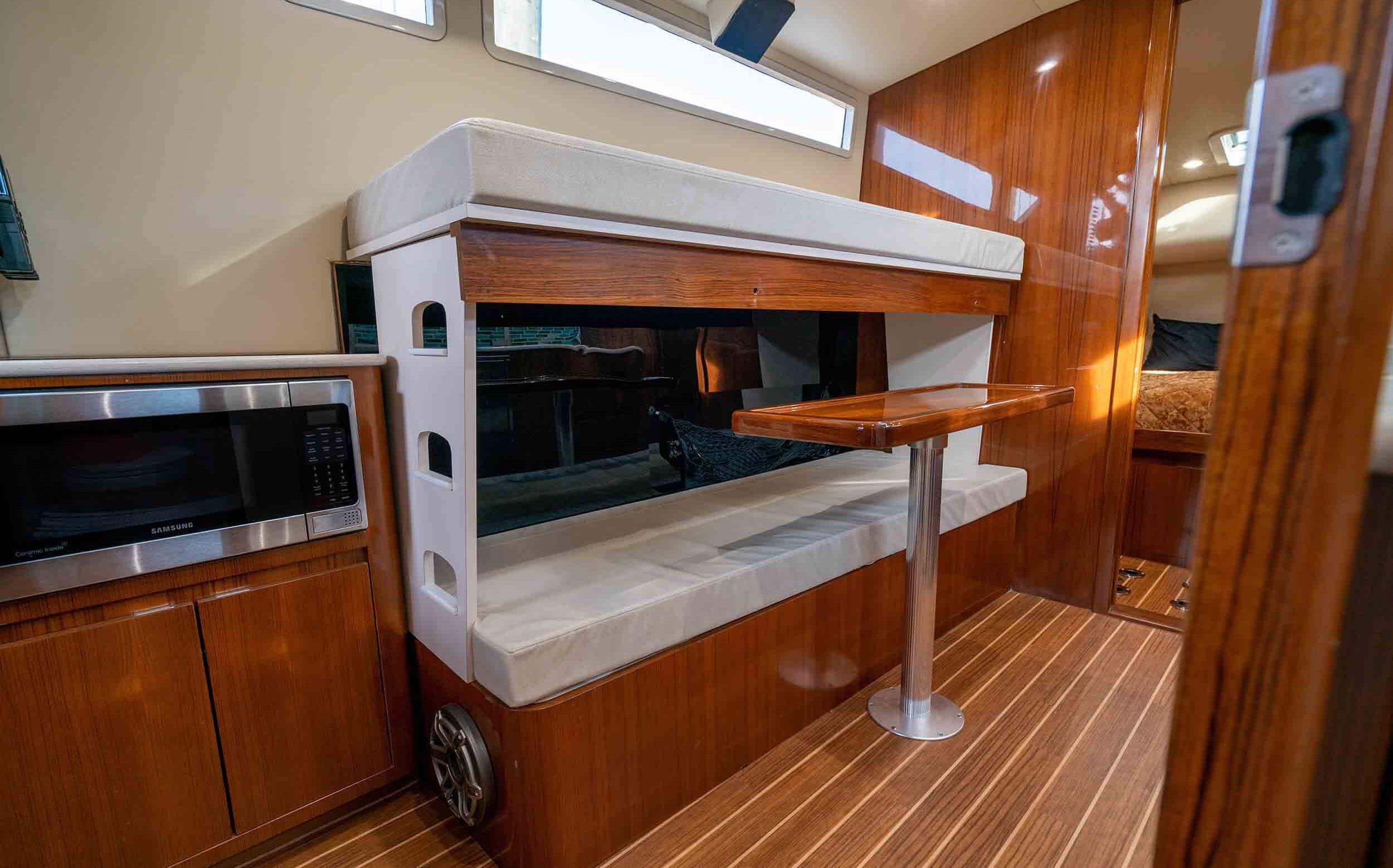

- Accommodations including (x2) cabin berths, and a second row flip-up bunk at helm
- Semi-enclosed with hardtop

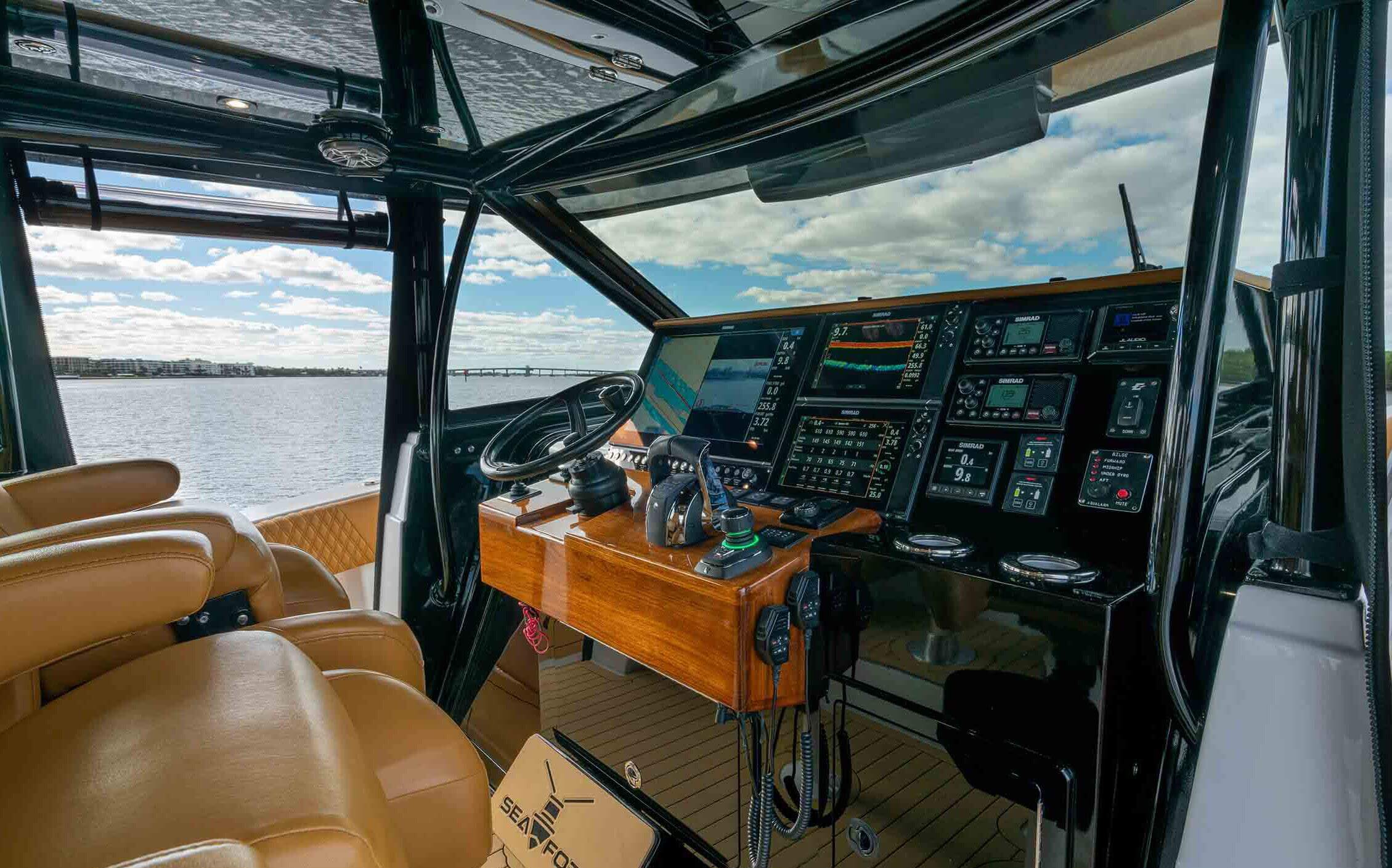

- Deluxe hardtop with SS Maxi Blast Horn, molded for radar pod, nav lights and cockpit spreader light

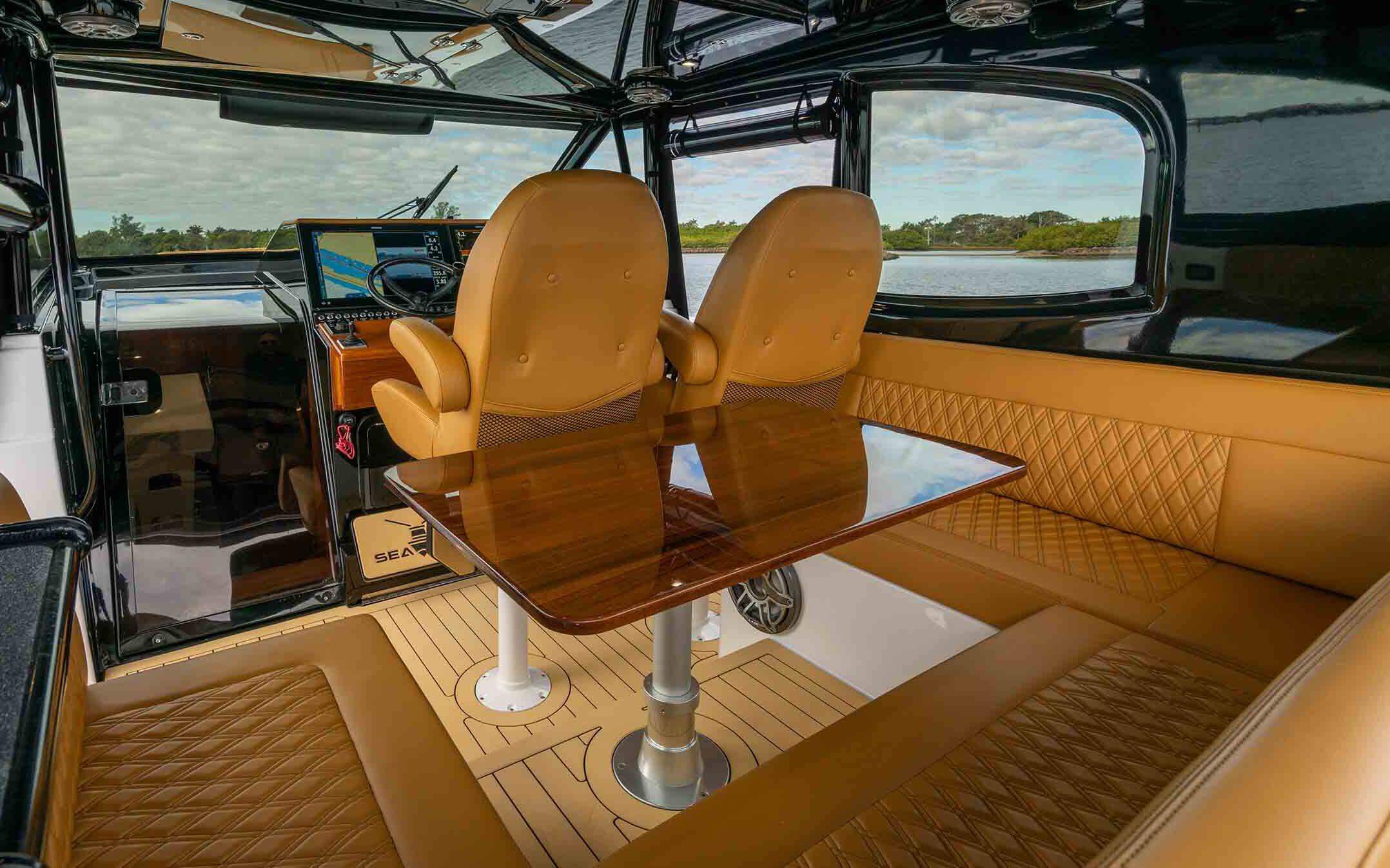

- Dual helm chairs w/ premium marine vinyl, arm rests, flip-up bolsters, and footrests
- Laminated safety glass windshield w/ side panels fore and aft of helm side entryways (all glass is chemically hardened and has UV barrier)
- Mercury DTS controls, JPO (Joystick w/ Skyhook and Autopilot)
- Edson SS steering wheel w/ tilt helm
- Exalto single arm pantograph windshield wiper
- Ritchie high speed backlit compass
- Termodinamica air-conditioning with vents at helm
- Lockable storage box with USB charging outlets
- (x2) Domestic refrigerated cup holders
- Illuminated switch panel
- Quick bow thruster joystick control
- Zip-wake control panel
- Package includes MediaMaster 100s (x6) speakers, (x1) 10” subwoofer w/ amplifier
- Package includes LED nav lights, down lights in cabin and helm, cockpit spreader lights, and courtesy lights.
OPTIONS
HULL COLOR OPTIONS- White
- Grey
- Ice Blue
- Custom (not offered as standard)
- White
- Grey
- Toast
- Custom (not offered as standard)
- Light Brown
- Grey
- Dark Brown
- Custom (not offered as standard)
- Dark gel coat color (black, navy, etc.)
- Gel coat color match underside of hardtop to hull color
- Synthetic flooring (SeaDek)
- Helm zip-up side curtains (canvas with eisenglass)
- Helm zip-up aft curtain (canvas with eisenglass)
- Aft shade with carbon fiber poles
- Canvas covers: mezzanine, livewell seat, bow longer
- Towing Package • Heavy duty towing eye with structural reinforcement in hull laminate. • Clam shells over critical thru-hulls • High-water alarm w/ audible horn and strobe light
- Additional gunwale mounted rod holders (offered in pairs)
- Electric reel outlets (offered in pairs)
- Gemlux Bluewater Series HD SS outrigger bases w/22ft carbon fiber telescoping outriggers
- Hydrostatically released life raft on hardtop
- Additional gunwale mounted rod holders (offered in pairs)
- Electric reel outlets (offered in pairs)
- 12 VDC water maker
- Removable livewell seating (backrest & cushion)
- Insta-freezer in fish boxes and/or livewells
- Additional gunwale mounted rod holders (offered in pairs)
- Electric reel outlets (offered in pairs)
- Additional Termodinamica A/C unit
- Mercury Next-Gen Controls (only available on 600hp)
- Thermal Camera Options: • FLIR M332 pan & tilt thermal camera • FLIR M364C pan/tilt/zoom gyrostabilized thermal camera
- Shock mitigated front row seating
- Choice of converting tackle center, triple seating, or full tackle center
- Port / Starboard additions (pick 2) • Refrigerator, Freezer, Ice Maker (port side only)
- Aluminum structure and fiberglass buggy top & hatch
- Fiberglass electronics pod
- Full helm with engine controls, trim control, VHF, steering wheel & tilt helm
- Double bench seat with premium marine vinyl, arm rest, and foot rest
- (x2) 6.5” speakers with amplifier upgrade
- 12” chart plotter
- (x2) RGB down lights
- Garmin Option 1: (x2) GPSMAP 8616 MFDs; GMR 424 xHD2 4KW 4’ radar; SS175M chirp transducer; VesselView 703 & VHF 115 marine radio with antenna
- Garmin Option 2: GMR Fantom 124 4’ Radar; upgrade to (2) GPSMAP 8617 MFDs; Bilateral SS175L/SS175H chirp transducers; VesselView 703; GPSMAP 8612 MFD in backrest of 2nd row helm seat; upgrade VHF to VHF 315 Marine Radio w/antenna on electric antenna mount; NMEA network expansion
- JL Audio Option 1: MediaMaster 100s with (x6) 6.5” speakers, (x2) 7.7” speakers and (x3) 10” subwoofers. All speakers/subwoofers and amplifiers are M3/M-series
- JL Audio Option 2: MediaMaster 100s with (x2) stereo remote controllers, (x10) 6.5” speakers, (x6) 7.7” speakers and (x4) 10” subwoofers. All speakers/subwoofers are M6 and amplifiers are MVi series
- Lumishore Option 1: RGB lighting package with MFD controls; under gunwale lights, (x2) underwater down lights, (x1) transom underwater light
- Lumishore Option 2: add (x3) transom underwater light; (x4) underwater down lights; RGB flex lighting under gunwale and toe kicks; (x6) additional RGB LED courtesy lights; sound to light connection with stereo; (x2) Razor light bars in cockpit
